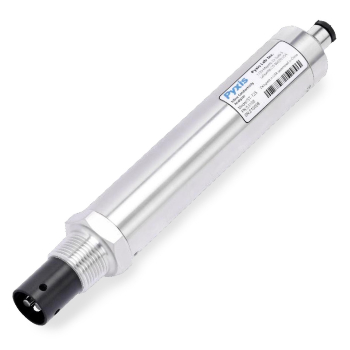

Pyxis ultra low conductivity sensors
The Pyxis Lab industrial grade in-line ultra-low conductivity sensors are specially designed for pure and ultra-pure water applications
The Pyxis Lab ST-724, ST-725 and ST-728 are ‘smart sensors’ with a built-in transmitter supporting digital & analog signal outputs, and are designed to simplify field installation, calibration and operation.
Features
- Two 4-20 mA analog outputs temperature and conductivity
- RS-485 digital output for conductivity and temperature
- Calibration and diagnostics by uPyxis app via Pyxis MA-CR Bluetooth adapter
- Rugged all stainless steel and Hastelloy construction
- Three sensor range options available
Installation & calibration
The sensors offer simple ¾” MNPT threaded installation or installation in the Pyxis inline tee assemblies and are constructed with a Hastelloy electrode tip and stainless-steel body.
All three models can be wirelessly calibrated with uPyxis app for mobile or desktop devices when used with the MA-CR Bluetooth adapter. The sensors both offer two 4-20mA Analog outputs, one for conductivity and one for temperature, as well as RS-485 Modbus output for a broad array of installations that desire to connect the smart sensor directly to receiving controller, PLC or DCS network. Sensors have built-in RTD for the automatic compensation of sample temperature.
All three models can be wirelessly calibrated with uPyxis app for mobile or desktop devices when used with the MA-CR Bluetooth adapter. The sensors both offer two 4-20mA Analog outputs, one for conductivity and one for temperature, as well as RS-485 Modbus output for a broad array of installations that desire to connect the smart sensor directly to receiving controller, PLC or DCS network. Sensors have built-in RTD for the automatic compensation of sample temperature.
Downloads
Typical applications
The Pyxis Lab ST-724, ST-725 and ST-728 are industrial grade in-line ultra-low conductivity sensors specially designed for pure, ultra-pure and de-ionised water applications, including:
- Boiler feed water and condensate
- RO and EDI/EDR process water
- Ion exchange
- Distillation
- Semi-conductor cleaning
- Degas conductivity and other process applications
Key information
| Model | Range | Precision | Temp (°C) |
|---|---|---|---|
ST-724 | 0.02-1,000.0 µS /cm | ± 0.2 µS/cm or ±1% (<500 µS) ± 2% (>500 µS) | 0 - 100 |
ST-725 | 0.02-200.0 µS /cm | ± 0.1 µS/cm or 1% of value | 0 - 100 |
ST-728 | 0.02-10.0 µS /cm | ± 0.1 µS/cm or 1% of value | 0 - 100 |
